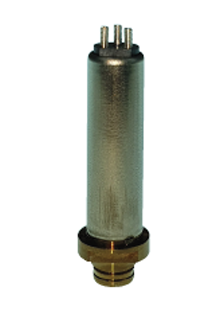

Automotive Pressure Sensor
SM110
대표이미지
Specifications
Range
0 ~ 25 MPa (Absolute)
Accuracy
0 ~ 5 MPa ± 1.56%FS
5 ~ 15 MPa ± 1.87%FS
15 ~ 25 MPa ± 2.2%FS
5 ~ 15 MPa ± 1.87%FS
15 ~ 25 MPa ± 2.2%FS
Operating temperature
-40 °C ~ 125 °C
Storage(Unpowered) temperature
-40 °C ~ 125 °C
Supply voltage
5 ± 0.25 VDC
Supply current
20 mA (max.)
Digital output
SENT Protocol
SENT Error flag
Status nibble bits 0 and 1
Full scale pressure
25 MPa
Proof pressure
30 MPa
Burst pressure
40 MPa
Temperature accuracy
± 10 °C
Description
SM110 is an automotive pressure sensor for ESC systems that uses silicon MEMS technology to operate reliably in high-temperature and high-pressure environments. By combining the high sensitivity of silicon semiconductors with the structural robustness of metal packaging, it delivers stable and accurate performance across demanding automotive applications. Thanks to these characteristics, the operating range is wide—from 1 bar to over 1,500 bar.
Features
- SENT Protocol
- Measuring range 0~250 bar
- ± 1.56%FS Accuracy 0~50 bar)
- High temperature and High pressure
- MEMS application
Application
- Automotive pressure measurement
- Calibration technology

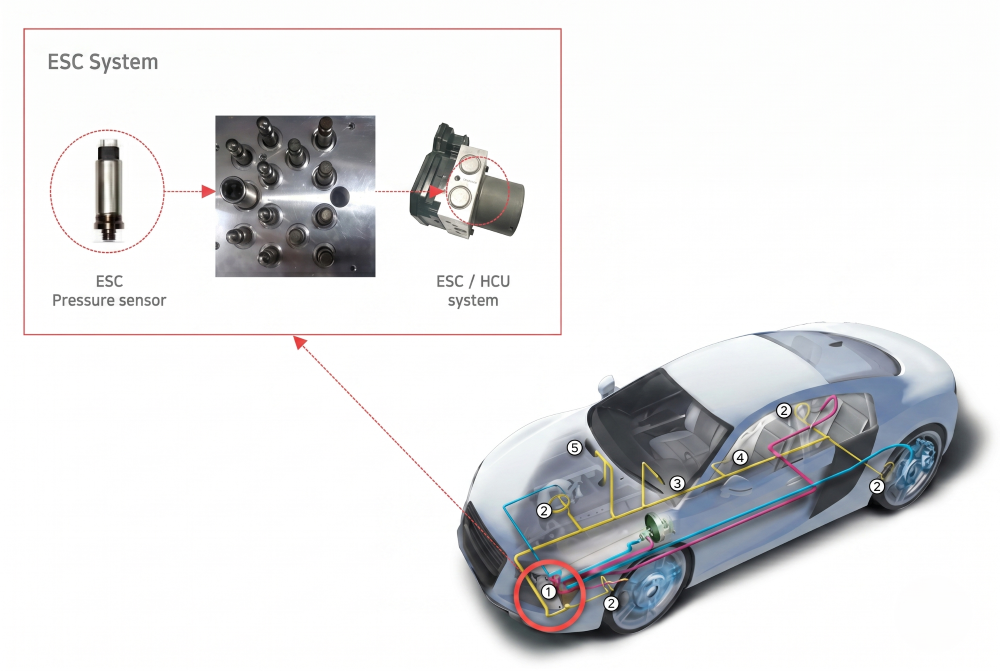

Use case 1
Use case 2
