Pressure Sensor for Heavy-duty Applications
IA100

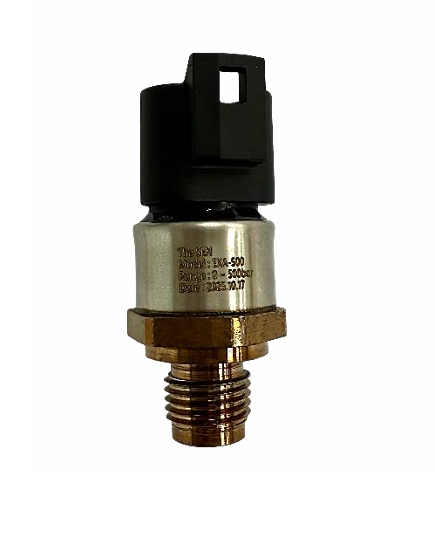

대표이미지
Specifications
Full scale pressure (bar)
50 / 100 / 500
Proof pressure (bar)
100 / 200 / 1,000
Burst pressure (bar)
250 / 500 / 2,500
Operating temperature
-40°C ~ 125°C
Pressure output error (with temperature)
Max: ± 1.50% FS at -40°C / 125°C
Min: ± 0.75% FS at 25°C
Min: ± 0.75% FS at 25°C
Supply voltage
8~30 VDC
Supply current
15 mA (max.)
Sensor output
Analog
Description
IA100 is a pressure sensor designed for demanding hydraulic environments in heavy-duty equipment. It combines the high sensitivity of silicon (Si) MEMS with the structural robustness of metal packaging to offset typical weaknesses and deliver stable, reliable pressure measurement. The operating range can be configured broadly from 50 bar to 500 bar.
Features
- Analog (voltage) output
- Measuring range: 0~50 bar / 100 bar / 500 bar
- Total error band accuracy: ± 1.50% FS
- MEMS technology
- Pulse snubber: built-in / non-built-in options
Application
- Heavy-duty hydraulic systems

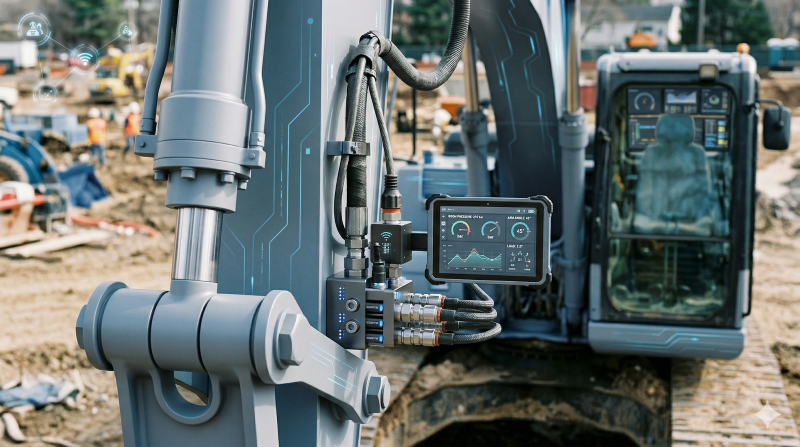

Use case 1

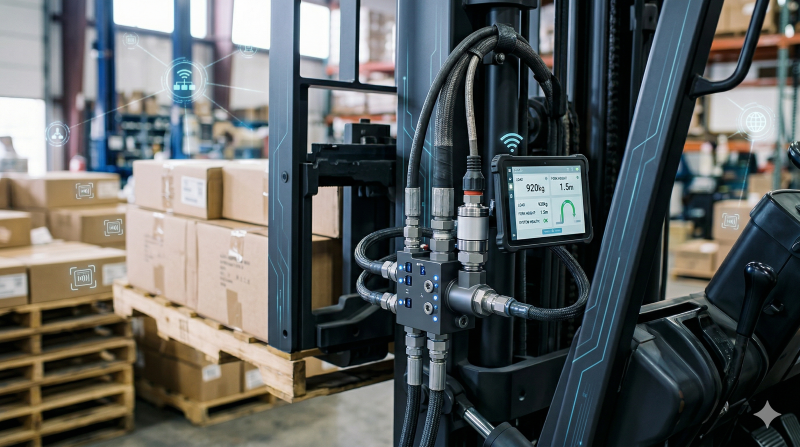

Use case 2
