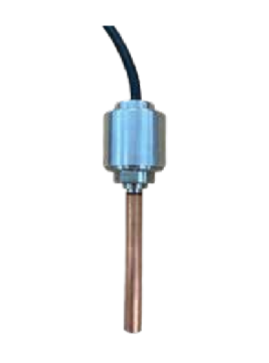

Pressure Sensor for HVAC
AC SENSOR
대표이미지
Specifications
Pressure range
0 ~ 20 bar / 0 ~ 50 bar
Proof pressure
50 bar (20 bar) / 75 bar (50 bar)
Burst pressure
100 bar (20 bar) / 200 bar (50 bar)
Temperature range
-30 ~ 120 °C
Total accuracy
± 2% FS (-20 ~ 80 °C)
Response time
Max 20msec
Sensor output
Analog: 0.5 ~ 4.5 V
Input voltage
5 V ± 0.25 V
Current Consumption
Max 10 mA
Description
AC SENSOR — Pressure Sensor for HVAC is a key component for efficient, stable operation of HVAC systems such as inverter air conditioner outdoor units. It detects pressure under various environmental conditions and supplies data to the control system, helping improve energy efficiency and protect the installation.
Features
- MEMS technology
- Pressure range: 0 ~ 50 bar
Application

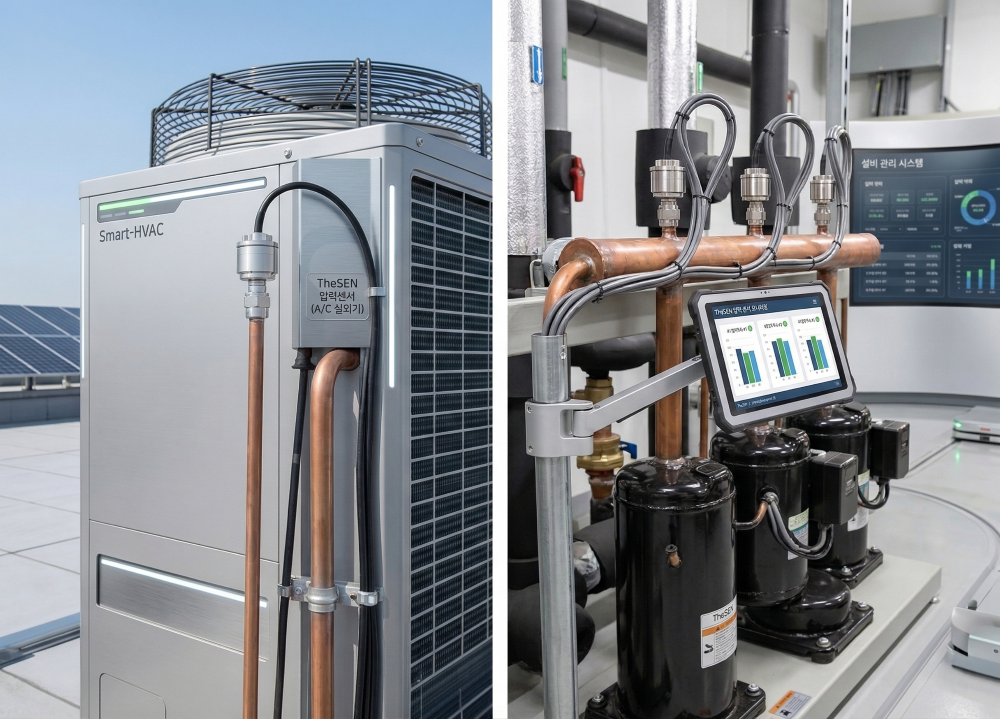

Calibration technology applied, HVAC systems (including outdoor air-conditioning units)
Use case 1
